PointGuard Home

PointGuard Home

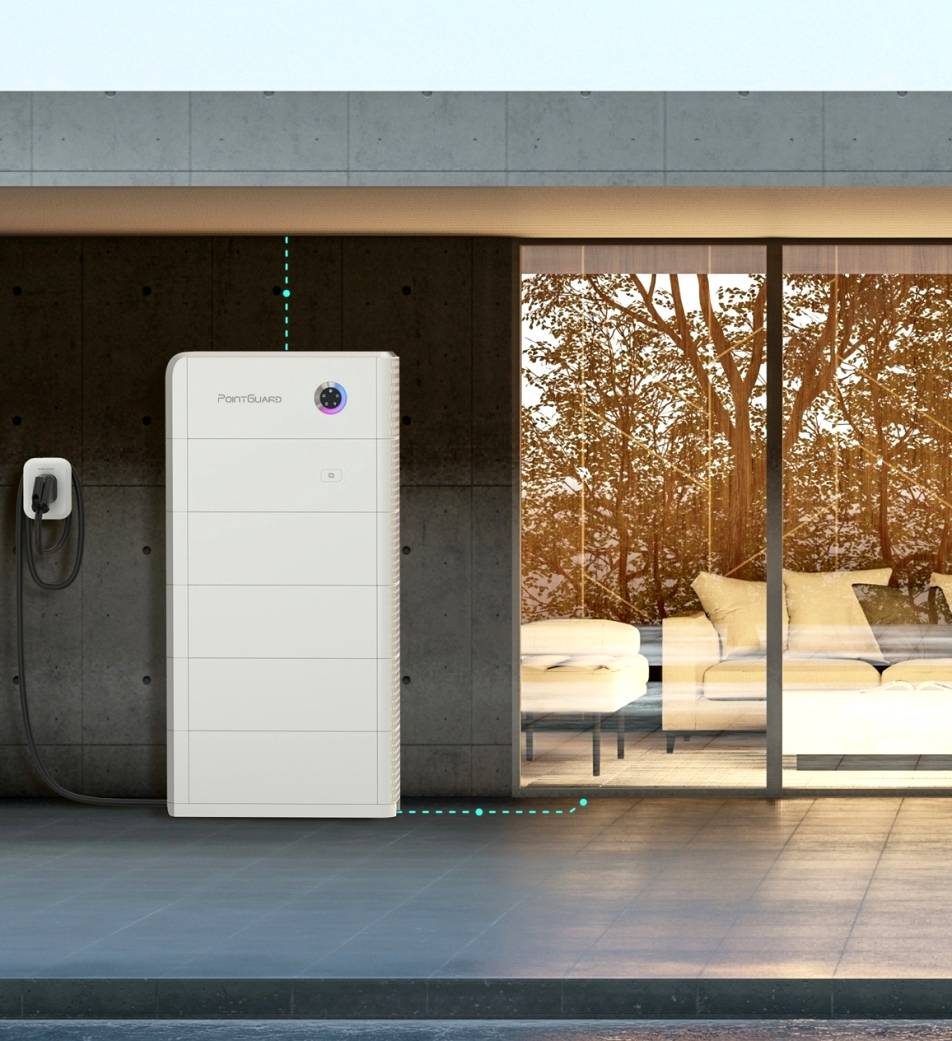

PointGuard Home is the world’s first AI-optimized, fully integrated 5-in-One home energy management system that empowers home owners to use solar energy to achieve energy independence with maximum efficiency, savings, flexibility and resilience.

5–in–One
Full integration.
Integrating the Solar Inverter, an optional bi-directional EV DC Charger, the Battery PCS, Battery Packs, and the EMS into one powerful energy system.
With a new era of battery safety, improved long-term performance, ultra-fast installation and commissioning, and a new dimension of intelligence, PointGuard Home provides energy security for your home for the long term.
Integrated Design Icon
Integrated
Design
Integrated Design Icon
Unrivalled
Safety
Integrated Design Icon
Energy
Independence
Integrated Design Icon
Max
Savings

Expandable on demand

The unique modular and stackable design of PointGuard Home allows for expansion of your system at any time.

With 5 and 8 kWh battery packs, flexible capacity combinations can be created to suit your needs at different stages of your independent home energy journey.

1–5
Batteries per stack
10 (max)
Stacks in
parallel
5-390 kWh
Capacity range
per system

Tough by design

Peace of mind.

  • 280 Ah large capacity battery cells, long lifespan
  • 5 major safety strategies in each battery pack
  • Multi-source black start capability, uninterrupted power
  • NEMA 4X enclosure type, install anywhere
5 major
Battery safety
strategies
32.85 V
Low voltage
architecture
0 ms
Load-side
disruption
NEMA 4X
Enclosure
type

Effortlessly efficient

Self-guiding pin connectors between modules automatically connect once stacked, avoiding the need for field wiring and saving installation cost.

As a DC-coupled system, PointGuard Home enjoys higher efficiency. DC-DC Optimizers in each battery pack and parallel pack-connections drive better long-term performance by avoiding battery mismatch.


Plug & Stack
5 min
Quick commissioning
2 min
Software upgrade
1 click
Full system scan
AI Optimized
Future proof.
Experience AI-assisted support, monitor deployed systems and perform remote diagnostics all via our myPointGuard App. System owners will enjoy AI-assisted energy planning, safety features and grid-services.
PointGuard Home is smart enough to learn patterns and self-evolve over time in order to provide the safest, most beneficial home energy experience.
Icon
AI assisted
Energy Planning
Icon
AI assisted
Grid Services
Icon
AI assisted
Safety Protection
Icon
AI assisted
Customer Support
4 Layer System Protection
PV disconnection protection
DC ground-fault protection
Grid fault protection
DC bus protection

5 Layer Battery Protection

Two-way EV Charging

Pioneering V2X

With the PointGuard Home DC-coupled charging module, you can harness the power of the sun and directly charge your EV with clean solar energy.

Additionally, its bi-directional capability allows you to tap into the power of your EV to backup your home during a power outage.


* V2X functionality is limited by the EV’s capabilities. Once the relevant standards are published, V2X feature can be upgraded through the OTA. For the official support of vehicle models and support timelines, please refer to future announcement made on the official website.

Slide 1
PointGuard Home

Energy Controller

• EMS inside for precise control

• DC ground-fault protection

• Multi-source black start

• On & off-grid compatibility

• Maximum 4 MPPT with 200% PV input oversizing

• NEMA 4X system enclosure

• NEC rapid shutdown compliant

• Seamless switching experience

• AFCI function integrated

Slide 1
PointGuard Home

Energy Controller

DC Input (from PV)
MPPT voltage range(V) ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ 50~550
No. of MPP. trackers‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ 2~4
No. of PV strings per MPPT ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎1
Max. input current per MPPT ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎16 A

AC Output (on-grid)
Nominal output power(W)‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎3840~11400
Nominal output voltage(V) ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎240/120

Efficiency
Max. efficiency ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎98.0%

Battery Connection
Supported battery module‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎‎ PG BatteryPack 5.0 / 8.0

General
Cooling ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎Smart air cooling
System enclosure type ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎NEMA 4X

Slide 1
PointGuard Home

V2X Module

• V2H (vehicle-to-home) power supply, ample backup energy

• V2G (vehicle-to-grid) power transfer, ready for energy trading

• EV-supported home energy system black start

• Max. 25 kW stable bi-directional charging

• 150 V ~ 1000 V charging, wide EV compatibility

• Charge EV with 100% solar power

• Track & schedule charging on myPointGuard App

• NEMA 4X system enclosure

Slide 1
PointGuard Home

V2X Module

DC Output
Max. charging power(kW) ‎ ‎ ‎ ‎‎ ‎ 12.5 | 25
Output voltage range(V) ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎150~500, 150~1000

Function
Authentication‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎RFID card / Auto. charging (no authentication)

General
User interface ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎‎‎LED indicator, App, RFID / NFC reader
Remote function ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎OTA, Remote diagnosis

Slide 1
PointGuard Home

Battery Pack

• Large cell capacity, low voltage & durable

•Multi-layer full battery safety protection

• Visible battery status on myPointGuard App

• Self-guiding plug connectors for fast installation

• AI-assisted, optimized battery cycle life

• Parallel connections for flexible battery mix

Slide 1
PointGuard Home

Battery Pack

Performance Specs
Battery type ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎LiFePO4
Total energy capacity (kWh) ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ 5.38 / 8.06
Usable energy capacity (kWh) ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ 5.2 / 7.8
Max. charge/discharge power (W) ‎ ‎ ‎2850 / 4350

General
Cooling ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎ ‎‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎‎‎ Natural convection
System enclosure type ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎NEMA 4X
Installation method ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎Floor standing / Wall-mounted
